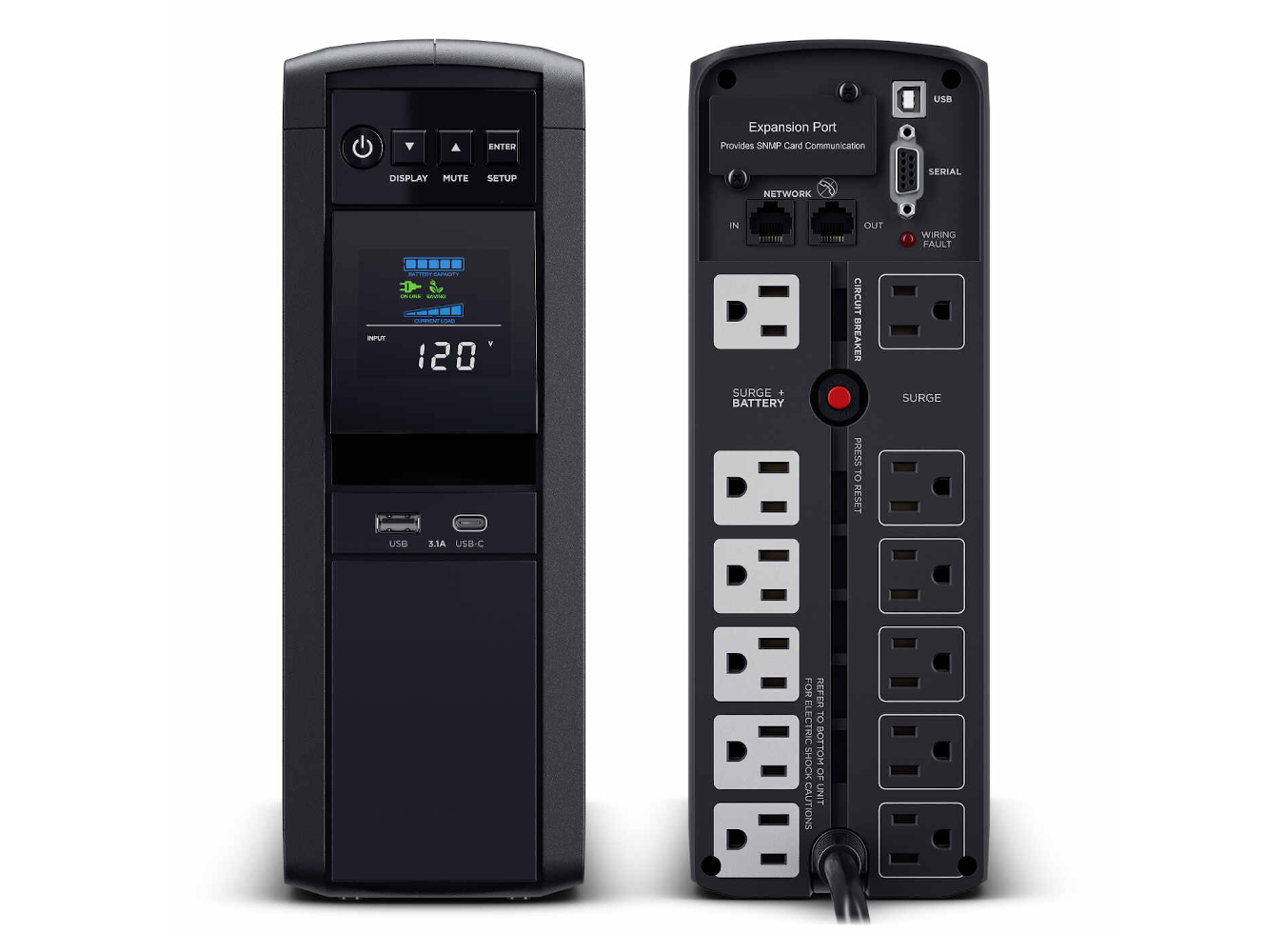

1500VA/1000W, 12 Outlet Uninterruptible Power Supply (UPS) (TPE-CYBST1500U)
An uninterruptible power supply (UPS), offers guaranteed power protection for connected electronics. When power is interrupted, or fluctuates outside safe levels, a UPS will instantly provide clean battery backup power and surge protection for plugged-in, sensitive equipment. Great for use with computers and peripherals such as monitors, modems, and networking equipment.
This unit delivers enough battery backup to power connected electronics through utility power failure and enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable electronics during longer outages. In tests we were able to maintain power for approximately 3 hours with a Penguin Pro desktop system and 21" monitor connected. Automatic suspend and/or shutdown functionality built into most distributions can ensure your data is not lost even when you are not able to immediately shut down a system yourself.
- Out of the box support on on GNU/Linux: Utilize your distribution's built-in power management software
- Setup documentation for popular and libre GNU/Linux distributions available through our support section
- Works today, tomorrow, and well into the future: Not dependent on OS-loaded proprietary components
- 1500VA/1000W Standby Battery Backup Uninterruptible Power Supply (UPS) System
- 12 NEMA 5-15R outlets: (6) battery backup & surge protected outlets and (6) surge protected outlets
- Includes UPS System, User Manual, USB A+B Type Cable for connectivity for PC monitoring of battery
- Runtime (half/full): 10 minutes / 2.5 minutes
- 5 feet cord with NEMA 5-15P plug
Please note that this item is NOT available for purchase outside the United States due to weight, shipping costs, and other regulatory issues.
|
Fast shipping: Most customers will receive this item within 1-5 business days within the United States.
|
|
Category
|
Specification
|
|
Active PFC Compatible
|
Yes
|
|
Energy Saving
|
GreenPower UPS™ Bypass Technology
|
|
Energy Star Certified |
Yes |
|
UPS Topology
|
Line Interactive
|
|
Battery Quantity
|
2
|
|
Battery Size
|
12 V / 9 Ah
|
|
Battery Type
|
Sealed Lead-Acid Battery
|
|
Hot Swappable |
Yes
|
|
UPS Topology
|
Line Interactive
|
|
Battery Quantity
|
2
|
|
Battery Size
|
12 V / 9 Ah
|
|
Battery Type
|
Sealed Lead-Acid Battery
|
|
Hot Swappable
|
Yes
|
|
Replacement Battery Cartridge
|
RB1290X2 (for serial numbers beginning with CXX)
RB1280X2B (for serial numbers beginning with CR9, CXF, or CQC)
|
|
Replacement Battery Cartridge Quantity
|
1
|
|
Runtime at Full Load
|
2.5 min
|
|
Runtime at Half Load
|
10 min
|
|
Typical Recharge Time
|
8 Hours
|
|
User Replaceable Battery
|
Yes
|
|
Circuit Breaker
|
15A
|
|
Cord Length
|
5 ft (2 m)
|
|
Input Frequency Range
|
57 Hz – 63 Hz
|
|
Input Plug Type
|
NEMA 5-15P
|
|
Input Voltage Range
|
88 VAC – 144 VAC
|
|
Nominal Input Voltage
|
120 VAC
|
|
Plug Style
|
Right Angle – 45° Offset
|
|
Automatic Voltage Regulation
|
Single Boost
|
|
On Battery Frequency
|
60 Hz ± 1%
|
|
On Battery Voltage
|
120 VAC ± 5%
|
|
On Battery Waveform
|
Sine Wave
|
|
Outlet Type
|
NEMA 5-15R
|
|
Outlets – Battery & Surge Protected
|
6
|
|
Outlets – Surge-Only Protected
|
6
|
|
Outlets – Total
|
12
|
|
Outlets – Widely Spaced
|
2
|
|
Output Power Factor
|
0.6
|
|
Overload Protection
|
Internal Circuitry Limiting
Circuit Breaker Protected
|
|
Typical Transfer Time
|
4 ms
|
|
USB Charge Port Amperage
|
3.1 Amps (Shared)
|
|
USB Charge Port Quantity
|
2
|
|
USB Charge Port Type
|
1 Type-A
1 Type-C
|
|
Under/Over-Voltage Correction
|
+11.5%
|
|
VA
|
1500 VA
|
|
Watts
|
1000 W
|
|
EMI/RFI Filtration
|
Yes
|
|
Network Protection RJ45
|
1-in / 1-Out (10/100/1000) + PoE Compatible
|
|
Surge Suppression (Joules)
|
1445 J
|
|
Audible Alarms
|
Battery Mode
Low Battery
Overload
Fault
|
|
HID Compliant USB Port
|
Yes
|
|
LCD
|
Multifunction LCD
|
|
LED Indicators
|
Power On
Wiring Fault
|
|
Management Cable
|
USB Cable
|
|
SNMP / HTTP Remote Monitoring
|
Yes – with optional RMCARD205
|
|
Serial Port
|
1 Dry Contact
|
|
Software
|
Built-in to most major GNU/Linux distributions
|
|
Color
|
Black
|
|
Form Factor
|
Mini-Tower
|
|
Material of Construction
|
Plastic
|
|
Physical Dimensions – (WxHxD) (cm)
|
9.91 x 27.94 x 35.56 (cm)
|
|
Physical Dimensions – (WxHxD) (in)
|
3.9 x 11.0 x 14.0 (in)
|
|
Physical Dimensions – (WxHxD) (mm)
|
99 x 279 x 356 (mm)
|
|
Weight (kg)
|
11.29
|
|
Weight (lb)
|
24.89 lbs
|
|
Shipping – Weight (kg)
|
12.7
|
|
Shipping – Weight (lb)
|
28.0
|
|
Shipping Dimensions – (WxHxD) (cm)
|
19.69 x 36.83 x 44.45 (cm)
|
|
Shipping Dimensions – (WxHxD) (in)
|
7.75 x 14.5 x 17.5 (in)
|
|
Shipping Dimensions – (WxHxD) (mm)
|
196.85 x 368.3 x 444.5 (mm)
|
|
Operating Elevation
|
0 – 10000 ft (0 – 3048 m)
|
|
Operating Relative Humidity
|
0 – 95 % (non-condensing)
|
|
Operating Temperature
|
32 – 104 °F (0 – 40 °C)
|
|
Storage Temperature
|
5 – 113 °F (-15 – 45 °C)
|
|
Environmental
|
RoHS Compliant
|
|
Safety
|
UL1778
cUL 107.3
FCC DOC Class B
|
|
Product Warranty
|
3 Year Limited Warranty
|
|
Compatible With
|
GNU/Linux, Microsoft Windows, Mac OS X (please be aware that we do not provide technical support for Microsoft Windows or Mac OS X)
|
Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)
|
|
Partial List Of Supported Releases:
Trisquel 9+Parabola GNU/Linux 2019.03.10, 2020.01.18, 2020.01.22, 2020.08.02, 2020.08.03, 2020.09, 2021.08.11, 2022.04, 2024.02Ubuntu 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10Kubuntu 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10Debian 9, 10, 11, 12Linux Mint 19, 19.1, 19.2, 19.3, 20, 20.1, 20.2, 20.3, 21, 21.1, 21.2, 21.2 Edge, 21.3, 21.3 Edge, 22Linux Mint Debian Edition (LMDE) 3, 4, 5, 6Fedora 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41CentOS Stream 8, 9CentOS 8 Series 8.0, 8.1, 8.2, 8.3, (discontinued)Rocky Linux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4, 9.5Rocky Linux 8 Series 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10Red Hat Enterprise Linux (RHEL) 9 Series 9.0, 9.1, 9.2, 9.3, 9.4, 9.5Red Hat Enterprise Linux (RHEL) 8 Series 8.0, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10Mageia 6, 6.1, 7, 7.1, 8, 9Manjaro 17.1, 18.0, 18.1.0, 19.0, 20.0, 20.1, 20.2, 20.2.1, 21.0, 21.0.1, 21.0.2, 21.0.3, 21.0.4, 21.0.5, 21.0.6, 21.0.7, 21.1.0, 21.1.1, 21.1.2, 21.1.3, 21.1.4, 21.1.5, 21.1.6, 21.2.0, 21.2.1, 21.2.2, 21.2.3, 21.2.4, 21.2.5, 21.2.6, 21.3.1, 21.3.2, 21.3.3, 21.3.4, 21.3.5, 21.3.6, 21.3.7, 22.0, 22.0.1, 22.0.2, 22.0.3, 22.0.4, 22.0.5, 22.1.0, 22.1.1, 22.1.2, 22.1.3, 23.0, 23.0.1, 23.0.2, 23.0.3, 23.0.4, 23.1.0, 23.1.1, 23.1.2, 23.1.3, 23.1.4, 24.0, 24.0.1, 24.0.2, 24.0.3, 24.0.4, 24.0.5, 24.0.6, 24.0.7, 24.0.8, 24.1.0, 24.1.1, 24.1.2, 24.2.0, 24.2.1
|
