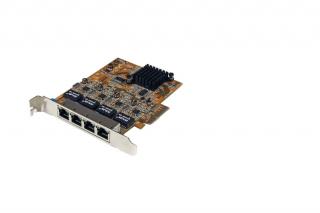

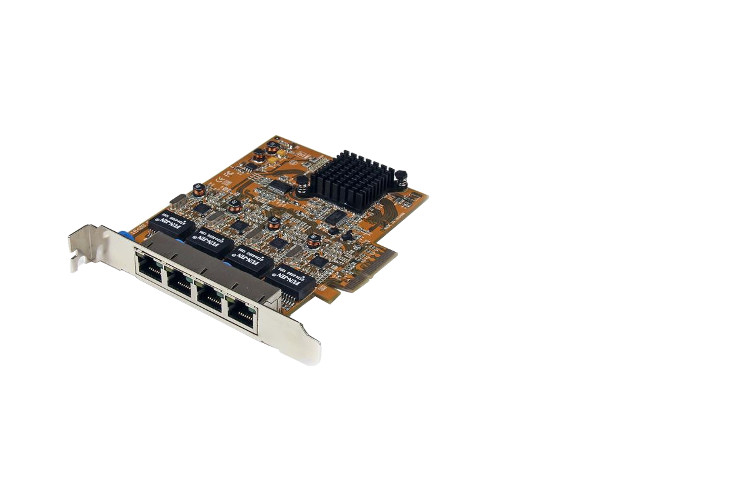

PCIe Gigabit Ethernet Card 4 Port (TPE-1000MPCIEQ4)

PCIe Gigabit Ethernet Card 4 Port (TPE-1000MPCIEQ4)
  • Support for 10 / 100 / 1000Mbps networks

  • Four independent 10/100/1000 RJ45 Ethernet ports

  • Jumbo Frame support up to 9k

  • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

  • Support for most popular and libre (free) distributions

  • Not dependent on NDISWrapper, binary blobs, or proprietary drivers-firmware

  • First time installing a PCIe card? Check out the PCIe card install demo, penguin style


Fast shipping:

Most customers will receive this item within 1-5 business days when selecting our "Standard Shipping" option or our USPS shipping option if within the US. Most others in populated regions will generally get it within 6-10 business days.

(* large quantities may take longer to deliver)
Category Specification
Chipset Realtek RTL8111E, PLX PEX8608
Speed 10 / 100/ 1000Mbps
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface PCI Express x4 Male
Connectors 4 x RJ45
Compatible with x4, x8, x16 PCI Express Card Slots
Full Duplex Support Yes
Maximum Data Transfer Rate 1000Mbps
10/100/1000M Data Auto-negotiation Yes
Supported Kernels At least Linux and Linux-libre 2.6.32+ have support out of the box; please contact us if you need support info for earlier kernels. While RTL8111E chip is supported in earlier releases the PEX8608 switch may not be, and if so only 2 of 4 ports will work.
Compatible With Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000, Windows Server® 2012, 2008 R2, 2003, Mac OS® 10.4 and up (Tested up to 10.10)


Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)
Partial List Of Supported Releases:

Trisquel 1, 2, 3, 3.5, 4.01, 4.5, 5, 5.5, 6, 6.01, 7, 8, 9, 10, 11
Slint 14.2, 15.0
Slackware 13.37, 14, 14.1, 14.2, 15.0
Ubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Lubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Peppermint Linux OS 1, 2, 3, 4, 5, 6, 7, 8, 9, 9 Respin-2, 10, 10 Respin, 10 Respin 20191210, 2022-02-02, 2022-10-02, 2022-11-07, 2022-11-28, 2023-07-01, 2023-10-15, 2024-07-01
Kubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Debian 6, 7, 8, 9, 10, 11, 12
Linux Mint 9, 10, 11, 12, 13, 14, 14.1, 15, 16, 17, 17.1, 17.2, 17.3, 18, 18.1, 18.2, 18.3, 19, 19.1, 19.2, 19.3, 20, 20.1, 20.2, 20.3, 21, 21.1, 21.2, 21.2 Edge, 21.3, 21.3 Edge, 22
Linux Mint Debian Edition (LMDE) 1, 2, 3, 4, 5, 6
elementary OS .1, .2, .3, .3.1, .3.2, .4, .4.1, 5.0, 5.1, 5.1.2, 5.1.3, 5.1.4, 5.1.5, 5.1.6, 5.1.7, 6, 6.1, 7, 7.1
Fedora 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41
OpenSuSE 11.3, 11.4, 12.1, 12.2, 12.3, 13.1, 13.2, Leap 42.1, 42.2, 42.3, 15.0, 15.1, 15.2, 15.3, 15.4, 15.5, 15.6
PCLinuxOS 2010.10, 2010.12, 2011.6, 2011.9, 2012.2, 2013.2, 2013.4, 2013.6, 2013.7, 2013.715, 2013.10, 2013.12, 2014.04, 2014.05, 2014.07, 2014.08, 2014.12, 2016.03, 2016.07, 2017.04, 2017.05, 2017.07, 2017.11, 2018.06, 2019.03, 2019.05, 2019.08, 2019.10, 2019.11, 2019.12, 2020.01, 2020.02, 2020.03, 2020.05, 2020.08, 2020.10, 2020.1015, 2021.0205, 2021.0215, 2021.08, 2021.11, 2022.01.10, 2022.04.10, 2022.04.20, 2022.07.10, 2022.11.20, 2022.11.30, 2022.12, 2023.05, 2023.07, 2023.08, 2024.04, 2024.10
Mageia 1, 2, 3, 4, 5, 5.1, 6, 6.1, 7, 7.1, 8, 9
Tails .7.2, .16, .19, .20, .21, .22, .22.1, .23, 1.0, 1.0.1, 1.1, 1.1.1, 1.1.2, 1.2, 1.2.1, 1.2.2, 1.2.3, 1.3, 1.3.1, 1.3.2, 1.4, 1.4.1, 1.5, 1.5.1, 1.6, 1.7, 2.0, 2.0.1, 2.3, 2.4, 2.5, 2.6, 2.7, 2.7.1, 2.9.1, 2.10, 2.11, 2.12, 3.0, 3.0.1, 3.1, 3.2, 3.3, 3.5, 3.6, 3.6.1, 3.6.2, 3.7, 3.8, 3.9, 3.9.1, 3.10.1, 3.11, 3.12, 3.12.1, 3.13, 3.13.1, 3.13.2, 3.14, 3.14.1, 3.14.2, 3.15, 3.16, 4.0, 4.1, 4.1.1, 4.2, 4.2.2, 4.3, 4.4, 4.4.1, 4.5, 4.6, 4.7, 4.8, 4.9, 4.10, 4.11, 4.12, 4.13, 4.14, 4.15, 4.15.1, 4.16, 4.17, 4.18, 4.19, 4.20, 4.21, 4.22, 4.23, 4.24, 4.25, 4.26, 4.27, 4.28, 4.29, 5.0, 5.1, 5.1.1, 5.2, 5.3, 5.3.1, 5.4, 5.5, 5.6, 5.7, 5.8, 5.9, 5.10, 5.11, 5.12, 5.13, 5.14, 5.15.1, 5.16, 5.16.1, 5.17, 5.18, 5.19, 5.19.1, 5.20, 5.21, 5.22, 6.0, 6.1, 6.2, 6.3, 6.4, 6.5, 6.6, 6.7, 6.8, 6.8.1, 6.9
CentOS Stream 8, 9
CentOS 8 Series 8.0, 8.1, 8.2, 8.3, (discontinued)
CentOS 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9
CentOS 6 Series 6.06, 6.1, 6.2, 6.3, 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10
Scientific Linux 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, (discontinued)
Scientific Linux 6 Series 6.06, 6.1, 6.2, 6.3, 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, (discontinued)
Rocky Linux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4
Rocky Linux 8 Series 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
AlmaLinux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4
AlmaLinux 8 Series 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
Red Hat Enterprise Linux (RHEL) 9 Series 9.0, 9.1, 9.2, 9.3, 9.4
Red Hat Enterprise Linux (RHEL) 8 Series 8.0, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
Red Hat Enterprise Linux (RHEL) 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7 ELS+
Red Hat Enterprise Linux (RHEL) 6 Series 6.06, 6.1, 6.2, 6.3, 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6 ELS+
Kali 1.0, 1.0.1, 1.0.2, 1.0.3, 1.0.4, 1.0.5, 1.0.6, 1.0.7, 1.0.8, 1.0.9, 1.09a, 1.1.0, 1.1.0a, 2.0, 2016.1, 2016.2, 2017.1, 2017.2, 2017.3, 2018.1, 2018.2, 2018.3, 2018.4, 2019, 2019.1a, 2019.2, 2019.3, 2019.4, 2020.1, 2020.1a, 2020.1b, 2020.1, 2020.2, 2020.3, 2020.4, 2021.1, 2021.2, 2021.3, 2021.4, 2021.4a, 2022.1, 2022.2, 2022.3, 2022.4, 2023.1, 2023.2, 2023.2a, 2023.3, 2023.4, 2024.1, 2024.2, 2024.3
Manjaro 0.8.0, 0.8.1, 0.8.2, 0.8.3, 0.8.4, 0.8.5, 0.8.6, 0.8.7, 0.8.8, 0.8.9, 0.8.10, 0.8.11, 0.8.12, 0.8.13, 15.09, 15.12, 16.06, 16.06.1, 16.08, 16.10, 17.0, 17.1, 18.0, 18.1.0, 19.0, 20.0, 20.1, 20.2, 20.2.1, 21.0, 21.0.1, 21.0.2, 21.0.3, 21.0.4, 21.0.5, 21.0.6, 21.0.7, 21.1.0, 21.1.1, 21.1.2, 21.1.3, 21.1.4, 21.1.5, 21.1.6, 21.2.0, 21.2.1, 21.2.2, 21.2.3, 21.2.4, 21.2.5, 21.2.6, 21.3.1, 21.3.2, 21.3.3, 21.3.4, 21.3.5, 21.3.6, 21.3.7, 22.0, 22.0.1, 22.0.2, 22.0.3, 22.0.4, 22.0.5, 22.1.0, 22.1.1, 22.1.2, 22.1.3, 23.0, 23.0.1, 23.0.2, 23.0.3, 23.0.4, 23.1.0, 23.1.1, 23.1.2, 23.1.3, 23.1.4, 24.0, 24.0.1, 24.0.2, 24.0.3, 24.0.4, 24.0.5, 24.0.6, 24.0.7, 24.0.8, 24.1.0, 24.1.1
Arch 2010.05, 2011.08.19, 2012.07.15, 2012.08.04, 2012.09.07, 2012.10.06, 2012.11.01, 2012.12.01, 2013.01.04, 2013.02.01, 2013.03.01, 2013.04.01, 2013.05.01, 2013.06.01, 2013.07.01, 2013.08.01, 2013.09.01, 2013.10.01, 2013.11.01, 2013.12.01, 2014.01.05, 2014.02.01, 2014.03.01, 2014.04.01, 2014.05.01, 2014.06.01, 2014.07.03, 2014.08.01, 2014.09.03, 2014.10.01, 2014.11.01, 2014.12.01, 2015.01.01, 2015.02.01, 2015.03.01, 2015.04.01, 2015.05.01, 2015.06.01, 2015.07.01, 2015.08.01, 2015.09.01, 2015.10.01, 2015.11.01, 2015.12.01, 2016.01.01, 2016.02.01, 2016.03.01, 2016.04.01, 2016.05.01, 2016.06.01, 2016.07.01, 2016.08.01, 2016.09.03, 2016.10.01, 2016.11.01, 2016.12.01, 2017.01.01, 2017.02.01, 2017.03.01, 2017.04.01, 2017.05.01, 2017.06.01, 2017.07.01, 2017.08.01, 2017.09.01, 2017.10.01, 2017.11.01, 2017.12.01, 2018.01.01, 2018.02.01, 2018.03.01, 2018.04.01, 2018.05.01, 2018.06.01, 2018.07.01, 2018.08.01, 2018.09.01, 2018.10.01, 2018.11.01, 2018.12.01, 2019.01.01, 2019.02.01, 2019.03.01, 2019.04.1, 2019.05.1, 2019.06.1, 2019.07.1, 2019.08.1, 2019.09.1, 2019.10.1, 2019.11.1, 2019.12.1, 2020.01.1, 2020.02.1, 2020.03.1, 2020.04.1, 2020.05.1, 2020.06.1, 2020.07.1, 2020.08.1, 2020.09.1, 2020.10.1, 2020.11.1, 2020.12.1, 2021.01.1, 2021.02.1, 2021.03.1, 2021.04.1, 2021.05.1, 2021.06.1, 2021.07.1, 2021.08.1, 2021.09.1, 2021.10.1, 2021.11.1, 2021.12.1, 2022.01.1, 2022.02.1, 2022.03.1, 2022.04.1, 2022.05.1, 2022.06.1, 2022.07.1, 2022.08.1, 2022.09.1, 2022.10.1, 2022.11.1, 2022.12.1, 2023.01.1, 2023.02.1, 2023.03.1, 2023.04.1, 2023.05.1, 2023.06.1, 2023.07.1, 2023.08.1, 2023.09.1, 2023.10.1, 2023.11.1, 2023.12.1, 2024.01.1, 2024.02.1, 2024.03.1, 2024.04.1, 2024.05.1, 2024.06.1, 2024.07.1, 2024.08.1, 2024.09.1, 2024.10.1, 2024.11.1
* BackTrack has been 'reborn' as Kali

All recently released distributions are compatible.

Connecting multiple PCs? Get our 8-Port Gigabit Ethernet Switch. See our example diagram on connecting a switch to one of our routers (there is nothing to install or configure, just connect and go).

Have you ever thought about the quality of your ethernet cables? Often devices ship with lower quality cables and this can lead to connectivity problems down the road. Consider an upgrade and save yourself the trouble of diagnosing connectivity issues.
