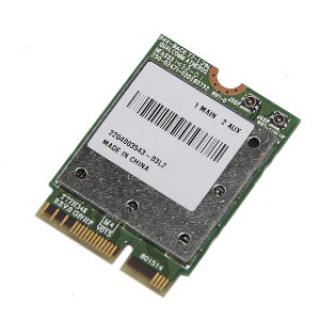

Wireless N Dual Band M.2 NGFF Combo Card (TPE-M2NCRD)

Wireless N Dual Band M.2 NGFF Combo Card (TPE-M2NCRD)
The Wireless N M.2, or Next Generation Form Factor (NGFF) Card is the best supported M.2 wireless card on the market. With the full set of sources available under a free software license the card is uniquely supported across all distributions. Actively maintained by the community there are no third parties to get in the way of bug fixes, driver/firmware improvements, or continued support. If you have a recent distribution simply install the card and boot. It'll work right "out of the box".


  • Experience video streaming and Internet calls with speeds up to 300Mbps

  • Connect to WEP and WPA networks

  • Support for most popular and libre (free) distributions

  • Not dependent on NDISWrapper, binary blobs, or proprietary drivers-firmware




Fast shipping:

Most customers will receive this item within 1-5 business days when selecting our "Standard Shipping" option or our USPS shipping option if within the US. Most others in populated regions will generally get it within 6-10 business days.

(* large quantities may take longer to deliver)
Category Specification
Chipset Atheros AR9462 (2.4 & 5Ghz)
Standard 802.11a/b/g/n
Interface M.2 (NGFF)
Size 2230 (ie dimensions are 22x30mm)
Key E Keyed Card
Antenna Connectors MHF4
Security WEP, WPA. WPA2
Certifications CE, FCC
Modes of operation supported in recent kernels Station Mode, AP Mode, IBSS Mode, Monitor Mode, Mesh point, WDS, P2P GO/CLIENT
Supported kernels 3.10+
Compatible with Windows 7


Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)
Get the right card: The M.2 slot comes in a variety of types. One type is primarily for SSD another wireless cards. It's only going to be found in newer systems most of which are coming onto the market as of mid 2015. If your system pre-dates December of 2013 this card is not compatible with your system.

Warning:

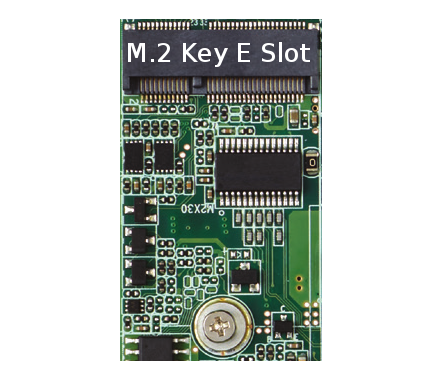

The majority of people buying this card are doing so in error. The size/shape is not what matters. Please take a look at your computer's documentation and verify that your computer has an E keyed M.2 slot as shown below. If you know there is an M2 / NGFF wifi card in the system and are not sure about the key type we recommend purchasing our other M.2 wifi card. It's compatible with both key type M2 wifi slots.



Notice: Many Apple, HP, Lenovo, IBM, Dell, and Toshiba branded products are defective by design. They use digital restrictions management technology and proprietary connectors to limit what hardware may be installed. This is usually a digital restriction in the BIOS that prevents the otherwise standards compliant M.2 slot from accepting anything but wifi cards sold by the PC manufacturer. If you have a problem with this please contact support to return or exchange the product within 14 days. For impacted users we recommend a USB wifi card instead.


Partial List Of Supported Releases:

Trisquel 7, 8, 9, 10, 11
Parabola GNU/Linux-Libre 2015.02.28, 2015.05.01, 2015.07.01, 2015.08.01, 2015.11.11, 2016.03.17, 2016.06.01, 2016.11.03, 2017.05.28, 2017.09.30, 2018.02.06, 2018.06.02, 2018.06.04, 2018.06.11, 2019.03.10, 2020.01.18, 2020.01.22, 2020.08.02, 2020.08.03, 2020.09, 2021.08.11, 2022.04, 2024.02
Slint 14.2, 15.0
Slackware 14.1, 14.2, 15.0
Ubuntu 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Lubuntu 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Kubuntu 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Peppermint Linux OS 5, 6, 7, 8, 9, 9 Respin-2, 10, 10 Respin, 10 Respin 20191210, 2022-02-02, 2022-10-02, 2022-11-07, 2022-11-28, 2023-07-01, 2023-10-15, 2024-07-01
Linux Mint 16, 17, 17.1, 17.2, 17.3, 18, 18.1, 18.2, 18.3, 19, 19.1, 19.2, 19.3, 20, 20.1, 20.2, 20.3, 21, 21.1, 21.2, 21.2 Edge, 21.3, 21.3 Edge, 22
Linux Mint Debian Edition (LMDE) 1, 2, 3, 4, 5, 6
Fedora 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41
OpenSuSE 13.1, 13.2, Leap 42.1, 42.2, 42.3, 15.0, 15.1, 15.2, 15.3, 15.4, 15.5, 15.6
elementary OS .3, .3.1, .3.2, .4, .4.1, 5.0, 5.1, 5.1.2, 5.1.3, 5.1.4, 5.1.5, 5.1.6, 5.1.7, 6, 6.1, 7, 7.1
PCLinuxOS 2014.04, 2014.05, 2014.07, 2014.08, 2014.12, 2016.03, 2016.07, 2017.04, 2017.05, 2017.07, 2017.11, 2018.06, 2019.03, 2019.05, 2019.08, 2019.10, 2019.11, 2019.12, 2020.01, 2020.02, 2020.03, 2020.05, 2020.08, 2020.10, 2020.1015, 2021.0205, 2021.0215, 2021.08, 2021.11, 2022.01.10, 2022.04.10, 2022.04.20, 2022.07.10, 2022.11.20, 2022.11.30, 2022.12, 2023.05, 2023.07, 2023.08, 2024.04, 2024.10
Debian 8, 9, 10, 11, 12
Tails 1.3.2, 1.4, 1.4.1, 1.5, 1.5.1, 1.6, 1.7, 2.0, 2.0.1, 2.3, 2.4, 2.5, 2.6, 2.7, 2.7.1, 2.9.1, 2.10, 2.11, 2.12, 3.0, 3.0.1, 3.1, 3.2, 3.3, 3.5, 3.6, 3.6.1, 3.6.2, 3.7, 3.8, 3.9, 3.9.1, 3.10.1, 3.11, 3.12, 3.12.1, 3.13, 3.13.1, 3.13.2, 3.14, 3.14.1, 3.14.2, 3.15, 3.16, 4.0, 4.1, 4.1.1, 4.2, 4.2.2, 4.3, 4.4, 4.4.1, 4.5, 4.6, 4.7, 4.8, 4.9, 4.10, 4.11, 4.12, 4.13, 4.14, 4.15, 4.15.1, 4.16, 4.17, 4.18, 4.19, 4.20, 4.21, 4.22, 4.23, 4.24, 4.25, 4.26, 4.27, 4.28, 4.29, 5.0, 5.1, 5.1.1, 5.2, 5.3, 5.3.1, 5.4, 5.5, 5.6, 5.7, 5.8, 5.9, 5.10, 5.11, 5.12, 5.13, 5.14, 5.15.1, 5.16, 5.16.1, 5.17, 5.18, 5.19, 5.19.1, 5.20, 5.21, 5.22, 6.0, 6.1, 6.2, 6.3, 6.4, 6.5, 6.6, 6.7, 6.8, 6.8.1, 6.9
Rocky Linux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4
Rocky Linux 8 Series 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
AlmaLinux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4
AlmaLinux 8 Series 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
Red Hat Enterprise Linux (RHEL) 9 Series 9.0, 9.1, 9.2, 9.3, 9.4
Red Hat Enterprise Linux (RHEL) 8 Series 8.0, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
Red Hat Enterprise Linux (RHEL) 7 Series 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7 ELS+
CentOS Stream 8, 9
CentOS 8 Series 8.0, 8.1, 8.2, 8.3, (discontinued)
CentOS 7 Series 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9
Scientific Linux 7 Series 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, (discontinued)
Manjaro 0.8.7, 0.8.8, 0.8.9, 0.8.10, 0.8.11, 0.8.12, 0.8.13, 15.09, 15.12, 16.06, 16.06.1, 16.08, 16.10, 17.0, 17.1, 18.0, 18.1.0, 19.0, 20.0, 20.1, 20.2, 20.2.1, 21.0, 21.0.1, 21.0.2, 21.0.3, 21.0.4, 21.0.5, 21.0.6, 21.0.7, 21.1.0, 21.1.1, 21.1.2, 21.1.3, 21.1.4, 21.1.5, 21.1.6, 21.2.0, 21.2.1, 21.2.2, 21.2.3, 21.2.4, 21.2.5, 21.2.6, 21.3.1, 21.3.2, 21.3.3, 21.3.4, 21.3.5, 21.3.6, 21.3.7, 22.0, 22.0.1, 22.0.2, 22.0.3, 22.0.4, 22.0.5, 22.1.0, 22.1.1, 22.1.2, 22.1.3, 23.0, 23.0.1, 23.0.2, 23.0.3, 23.0.4, 23.1.0, 23.1.1, 23.1.2, 23.1.3, 23.1.4, 24.0, 24.0.1, 24.0.2, 24.0.3, 24.0.4, 24.0.5, 24.0.6, 24.0.7, 24.0.8, 24.1.0, 24.1.1
Arch 2013.08.01, 2013.09.01, 2013.10.01, 2013.11.01, 2013.12.01, 2014.01.05, 2014.02.01, 2014.03.01, 2014.04.01, 2014.05.01, 2014.06.01, 2014.07.03, 2014.08.01, 2014.09.03, 2014.10.01, 2014.11.01, 2014.12.01, 2015.01.01, 2015.02.01, 2015.03.01, 2015.04.01, 2015.05.01, 2015.06.01, 2015.07.01, 2015.08.01, 2015.09.01, 2015.10.01, 2015.11.01, 2015.12.01, 2016.01.01, 2016.02.01, 2016.03.01, 2016.04.01, 2016.05.01, 2016.06.01, 2016.07.01, 2016.08.01, 2016.09.03, 2016.10.01, 2016.11.01, 2016.12.01, 2017.01.01, 2017.02.01, 2017.03.01, 2017.04.01, 2017.05.01, 2017.06.01, 2017.07.01, 2017.08.01, 2017.09.01, 2017.10.01, 2017.11.01, 2017.12.01, 2018.01.01, 2018.02.01, 2018.03.01, 2018.04.01, 2018.05.01, 2018.06.01, 2018.07.01, 2018.08.01, 2018.09.01, 2018.10.01, 2018.11.01, 2018.12.01, 2019.01.01, 2019.02.01, 2019.03.01, 2019.04.1, 2019.05.1, 2019.06.1, 2019.07.1, 2019.08.1, 2019.09.1, 2019.10.1, 2019.11.1, 2019.12.1, 2020.01.1, 2020.02.1, 2020.03.1, 2020.04.1, 2020.05.1, 2020.06.1, 2020.07.1, 2020.08.1, 2020.09.1, 2020.10.1, 2020.11.1, 2020.12.1, 2021.01.1, 2021.02.1, 2021.03.1, 2021.04.1, 2021.05.1, 2021.06.1, 2021.07.1, 2021.08.1, 2021.09.1, 2021.10.1, 2021.11.1, 2021.12.1, 2022.01.1, 2022.02.1, 2022.03.1, 2022.04.1, 2022.05.1, 2022.06.1, 2022.07.1, 2022.08.1, 2022.09.1, 2022.10.1, 2022.11.1, 2022.12.1, 2023.01.1, 2023.02.1, 2023.03.1, 2023.04.1, 2023.05.1, 2023.06.1, 2023.07.1, 2023.08.1, 2023.09.1, 2023.10.1, 2023.11.1, 2023.12.1, 2024.01.1, 2024.02.1, 2024.03.1, 2024.04.1, 2024.05.1, 2024.06.1, 2024.07.1, 2024.08.1, 2024.09.1, 2024.10.1, 2024.11.1


Notes: Almost all recently released distributions are compatible.

Are you assembling a new computer or need to replace a damaged antenna? Besides the wifi cards themselves we also offer a number of different types of antenna.
