Wireless N PCI Express Dual-Band Mini Half-Height Card w/ full height bracket opt (TPE-NHMPCIED2)

Wireless N PCI Express Dual-Band Mini Half-Height Card w/ full height bracket opt (TPE-NHMPCIED2) Wireless N PCI Express Dual-Band Mini Half-Height Card w/ full height bracket opt (TPE-NHMPCIED2)

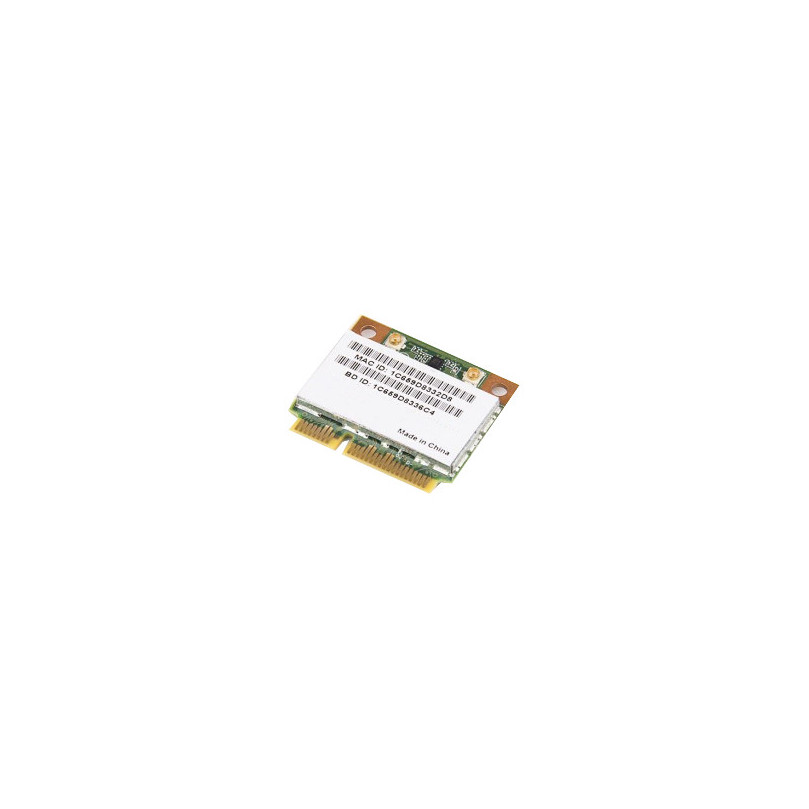

The Penguin Wireless N PCI Express Dual-Band Mini Half-Height Card is perfect for use in routers and other devices needing AP mode / master mode support via hostapd.

  • Speeds up to 300Mbps

  • Dual-band 2.4 & 5 Ghz

  • Support for most popular and libre (free) distributions

  • Not dependent on NDISWrapper, binary blobs, or proprietary drivers-firmware

  • Vetted and certified by the Free Software Foundation under the RYF program



Fast shipping:

Most customers will receive this item within 1-5 business days when selecting our "Standard Shipping" option or our USPS shipping option if within the US. Most others in populated regions will generally get it within 6-10 business days.

(* large quantities may take longer to deliver)
Category Specification
Chipset Atheros AR9280
Standard a/b/g/n
Interface Half Height MiniPCIe
Antenna Connectors Two
Security WEP, WPA. WPA2
Certifications CE, FCC
Modes of operation supported in recent kernels Station Mode, AP Mode, IBSS Mode, Monitor Mode, Mesh point, WDS, Master Mode
Supported kernels 2.6.32
Compatible with MS Windows XP/Vista/7/8

We have also performed basic testing of this card for Freebsd 10.1 and pfSense 2.2 (and it works, earlier versions most likely also work, contact us if you need information on earlier versions).


Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)
Get the right card: Check out our Mini PCI guide for help.

Notice: Many Apple, HP, Lenovo, IBM, Dell, and Toshiba branded products are defective by design. They use digital restrictions management technology and proprietary connectors to limit what hardware may be installed. This is usually a digital restriction in the BIOS that prevents the otherwise standards compliant half height Mini PCIe slot from accepting anything but wifi cards sold by the PC manufacturer. If you have a problem with this please contact support to return or exchange the product within 14 days. For impacted users we recommend a USB wifi card instead.

Partial List Of Supported Releases:

Trisquel 4.5, 5, 5.5, 6, 6.01, 7, 8, 9, 10, 11, 11.01
Slint 14.2, 15.0
Slackware 13.1, 13.37, 14, 14.1, 14.2, 15.0
Ubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Lubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Kubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04, 24.10
Peppermint Linux OS 1, 2, 3, 4, 5, 6, 7, 8, 9, 9 Respin-2, 10, 10 Respin, 10 Respin 20191210, 2022-02-02, 2022-10-02, 2022-11-07, 2022-11-28, 2023-07-01, 2023-10-15, 2024-07-01
Linux Mint 9, 10, 11, 12, 13, 14, 14.1, 15, 16, 17, 17.1, 17.2, 17.3, 18, 18.1, 18.2, 18.3, 19, 19.1, 19.2, 19.3, 20, 20.1, 20.2, 20.3, 21, 21.1, 21.2, 21.2 Edge, 21.3, 21.3 Edge, 22
Linux Mint Debian Edition (LMDE) 1, 2, 3, 4, 5, 6
Fedora 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41
OpenSuSE 11.0, 11.1, 11.2, 11.3, 11.4, 12.1, 12.2, 12.3, 13.1, 13.2, Leap 42.1, 42.2, 42.3, 15.0, 15.1, 15.2, 15.3, 15.4, 15.5, 15.6
Mageia , 2, 3, 4, 5, 5.1, 6, 6.1, 7, 7.1, 8, 9
Debian 6, 7, 8, 9, 10, 11, 12
elementary OS , .2, .3, .3.1, .3.2, .4, .4.1, 5.0, 5.1, 5.1.2, 5.1.3, 5.1.4, 5.1.5, 5.1.6, 5.1.7, 6, 6.1, 7, 7.1, 8
Tails 1.0, 1.0.1, 1.1, 1.1.1, 1.1.2, 1.2, 1.2.1, 1.2.2, 1.2.3, 1.3, 1.3.1, 1.3.2, 1.4, 1.4.1, 1.5, 1.5.1, 1.6, 1.7, 2.0, 2.0.1, 2.3, 2.4, 2.5, 2.6, 2.7, 2.7.1, 2.9.1, 2.10, 2.11, 2.12, 3.0, 3.0.1, 3.1, 3.2, 3.3, 3.5, 3.6, 3.6.1, 3.6.2, 3.7, 3.8, 3.9, 3.9.1, 3.10.1, 3.11, 3.12, 3.12.1, 3.13, 3.13.1, 3.13.2, 3.14, 3.14.1, 3.14.2, 3.15, 3.16, 4.0, 4.1, 4.1.1, 4.2, 4.2.2, 4.3, 4.4, 4.4.1, 4.5, 4.6, 4.7, 4.8, 4.9, 4.10, 4.11, 4.12, 4.13, 4.14, 4.15, 4.15.1, 4.16, 4.17, 4.18, 4.19, 4.20, 4.21, 4.22, 4.23, 4.24, 4.25, 4.26, 4.27, 4.28, 4.29, 5.0, 5.1, 5.1.1, 5.2, 5.3, 5.3.1, 5.4, 5.5, 5.6, 5.7, 5.8, 5.9, 5.10, 5.11, 5.12, 5.13, 5.14, 5.15.1, 5.16, 5.16.1, 5.17, 5.18, 5.19, 5.19.1, 5.20, 5.21, 5.22, 6.0, 6.1, 6.2, 6.3, 6.4, 6.5, 6.6, 6.7, 6.8, 6.8.1, 6.9
PCLinuxOS 2011.6, 2011.9, 2012.2, 2013.2, 2013.4, 2013.6, 2013.7, 2013.715, 2013.10, 2013.12, 2014.04, 2014.05, 2014.07, 2014.08, 2014.12, 2016.03, 2016.07, 2017.04, 2017.05, 2017.07, 2017.11, 2018.06, 2019.03, 2019.05, 2019.08, 2019.10, 2019.11, 2019.12, 2020.01, 2020.02, 2020.03, 2020.05, 2020.08, 2020.10, 2020.1015, 2021.0205, 2021.0215, 2021.08, 2021.11, 2022.01.10, 2022.04.10, 2022.04.20, 2022.07.10, 2022.11.20, 2022.11.30, 2022.12, 2023.05, 2023.07, 2023.08, 2024.04, 2024.10
Rocky Linux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4, 9.5
Rocky Linux 8 Series 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
AlmaLinux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4, 9.5
AlmaLinux 8 Series 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
Red Hat Enterprise Linux (RHEL) 9 Series 9.0, 9.1, 9.2, 9.3, 9.4
Red Hat Enterprise Linux (RHEL) 8 Series 8.0, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 8.10
Red Hat Enterprise Linux (RHEL) 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7 ELS+
Red Hat Enterprise Linux (RHEL) 6 Series 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6 ELS+
CentOS Stream 8, 9
CentOS 8 Series 8.0, 8.1, 8.2, 8.3, (discontinued)
CentOS 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9
CentOS 6 Series 6.5, 6.6, 6.7, 6.8, 6.9, 6.10
Scientific Linux 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, (discontinued)
Scientific Linux 6 Series 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, (discontinued)
Arch 2010.05, 2011.08.19, 2012.07.15, 2012.08.04, 2012.09.07, 2012.10.06, 2012.11.01, 2012.12.01, 2013.01.04, 2013.02.01, 2013.03.01, 2013.04.01, 2013.05.01, 2013.06.01, 2013.07.01, 2013.08.01, 2013.09.01, 2013.10.01, 2013.11.01, 2013.12.01, 2014.01.05, 2014.02.01, 2014.03.01, 2014.04.01, 2014.05.01, 2014.06.01, 2014.07.03, 2014.08.01, 2014.09.03, 2014.10.01, 2014.11.01, 2014.12.01, 2015.01.01, 2015.02.01, 2015.03.01, 2015.04.01, 2015.05.01, 2015.06.01, 2015.07.01, 2015.08.01, 2015.09.01, 2015.10.01, 2015.11.01, 2015.12.01, 2016.01.01, 2016.02.01, 2016.03.01, 2016.04.01, 2016.05.01, 2016.06.01, 2016.07.01, 2016.08.01, 2016.09.03, 2016.10.01, 2016.11.01, 2016.12.01, 2017.01.01, 2017.02.01, 2017.03.01, 2017.04.01, 2017.05.01, 2017.06.01, 2017.07.01, 2017.08.01, 2017.09.01, 2017.10.01, 2017.11.01, 2017.12.01, 2018.01.01, 2018.02.01, 2018.03.01, 2018.04.01, 2018.05.01, 2018.06.01, 2018.07.01, 2018.08.01, 2018.09.01, 2018.10.01, 2018.11.01, 2018.12.01, 2019.01.01, 2019.02.01, 2019.03.01, 2019.04.1, 2019.05.1, 2019.06.1, 2019.07.1, 2019.08.1, 2019.09.1, 2019.10.1, 2019.11.1, 2019.12.1, 2020.01.1, 2020.02.1, 2020.03.1, 2020.04.1, 2020.05.1, 2020.06.1, 2020.07.1, 2020.08.1, 2020.09.1, 2020.10.1, 2020.11.1, 2020.12.1, 2021.01.1, 2021.02.1, 2021.03.1, 2021.04.1, 2021.05.1, 2021.06.1, 2021.07.1, 2021.08.1, 2021.09.1, 2021.10.1, 2021.11.1, 2021.12.1, 2022.01.1, 2022.02.1, 2022.03.1, 2022.04.1, 2022.05.1, 2022.06.1, 2022.07.1, 2022.08.1, 2022.09.1, 2022.10.1, 2022.11.1, 2022.12.1, 2023.01.1, 2023.02.1, 2023.03.1, 2023.04.1, 2023.05.1, 2023.06.1, 2023.07.1, 2023.08.1, 2023.09.1, 2023.10.1, 2023.11.1, 2023.12.1, 2024.01.1, 2024.02.1, 2024.03.1, 2024.04.1, 2024.05.1, 2024.06.1, 2024.07.1, 2024.08.1, 2024.09.1, 2024.10.1, 2024.11.1, 2024.12.1
Manjaro 0.8.0, 0.8.1, 0.8.2, 0.8.3, 0.8.4, 0.8.5, 0.8.6, 0.8.7, 0.8.8, 0.8.9, 0.8.10, 0.8.11, 0.8.12, 0.8.13, 15.09, 15.12, 16.06, 16.06.1, 16.08, 16.10, 17.0, 17.1, 18.0, 18.1.0, 19.0, 20.0, 20.1, 20.2, 20.2.1, 21.0, 21.0.1, 21.0.2, 21.0.3, 21.0.4, 21.0.5, 21.0.6, 21.0.7, 21.1.0, 21.1.1, 21.1.2, 21.1.3, 21.1.4, 21.1.5, 21.1.6, 21.2.0, 21.2.1, 21.2.2, 21.2.3, 21.2.4, 21.2.5, 21.2.6, 21.3.1, 21.3.2, 21.3.3, 21.3.4, 21.3.5, 21.3.6, 21.3.7, 22.0, 22.0.1, 22.0.2, 22.0.3, 22.0.4, 22.0.5, 22.1.0, 22.1.1, 22.1.2, 22.1.3, 23.0, 23.0.1, 23.0.2, 23.0.3, 23.0.4, 23.1.0, 23.1.1, 23.1.2, 23.1.3, 23.1.4, 24.0, 24.0.1, 24.0.2, 24.0.3, 24.0.4, 24.0.5, 24.0.6, 24.0.7, 24.0.8, 24.1.0, 24.1.1, 24.1.2
Batocera.linux 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40


All recently released distributions are compatible.

Are you assembling a new computer? Need to replace a damaged antenna? Well, we have good news. We also stock a number of different types of antenna compatible with this card.

Get inexpensive hassle-free repair, replacement, and support for your device. Whether it's been damaged or you just can't figure out why it's not working we'll be here to help. Purchase up to 3 years of total support and protection.

As full and half height slots are compatible with each other aside from the physical size differences you can pick up a mini PCIE half height to full height card bracket such that the half height card will now fit your full height slot.
